High-Density Modular Patch Panel

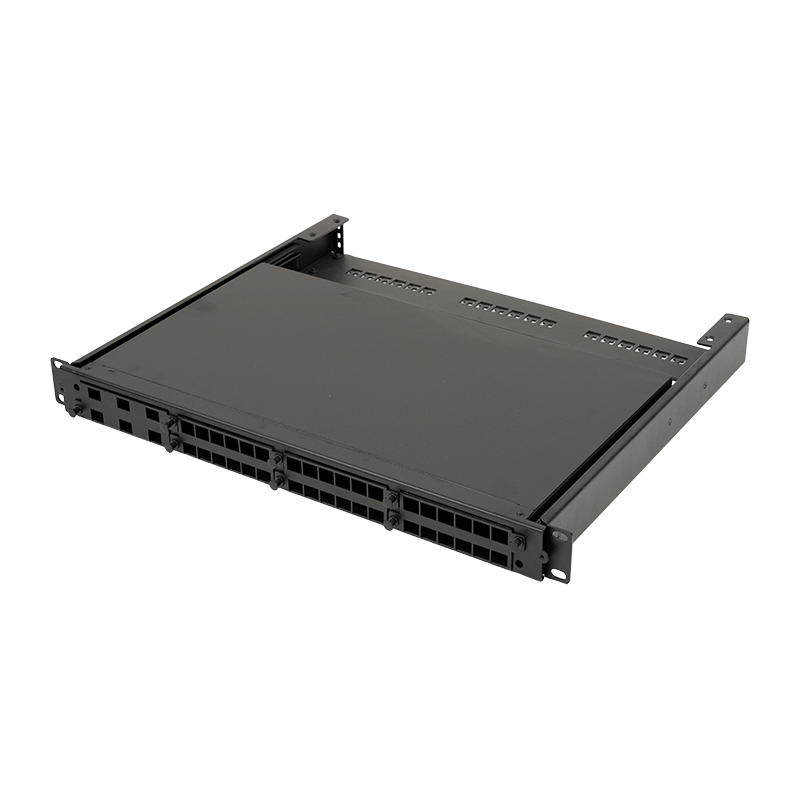

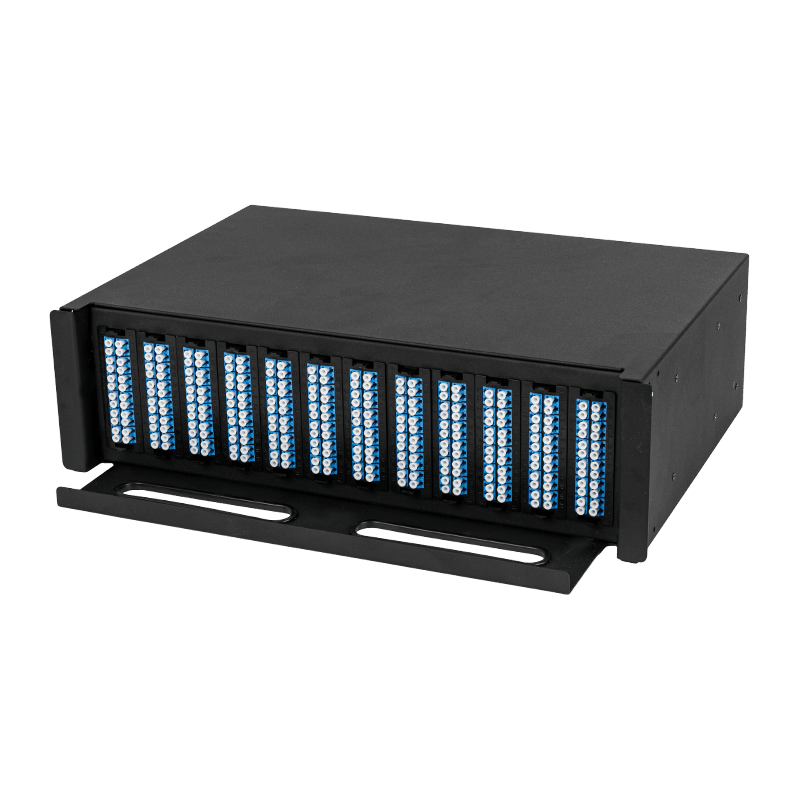

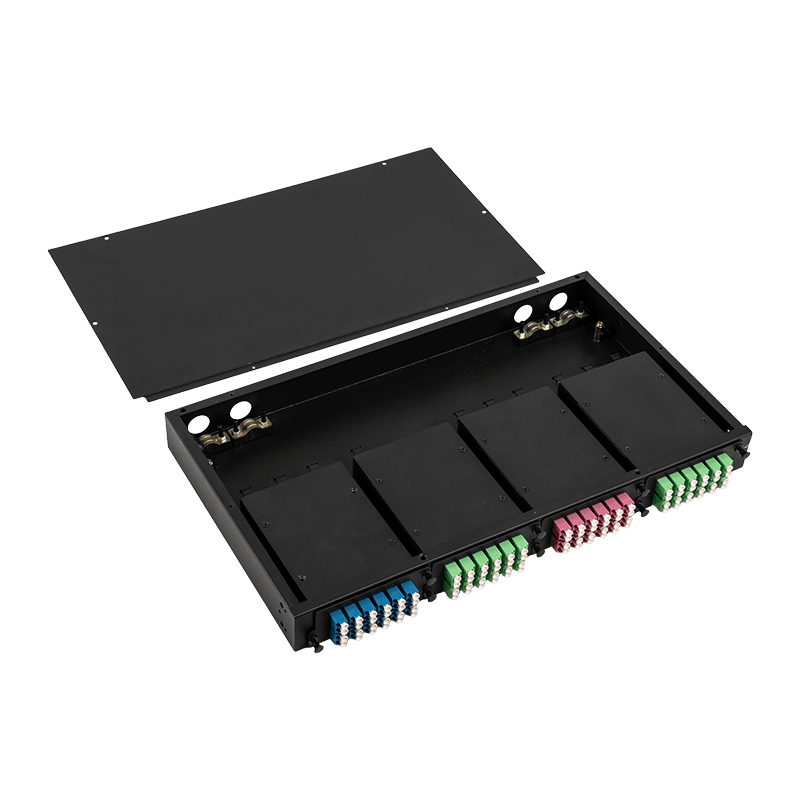

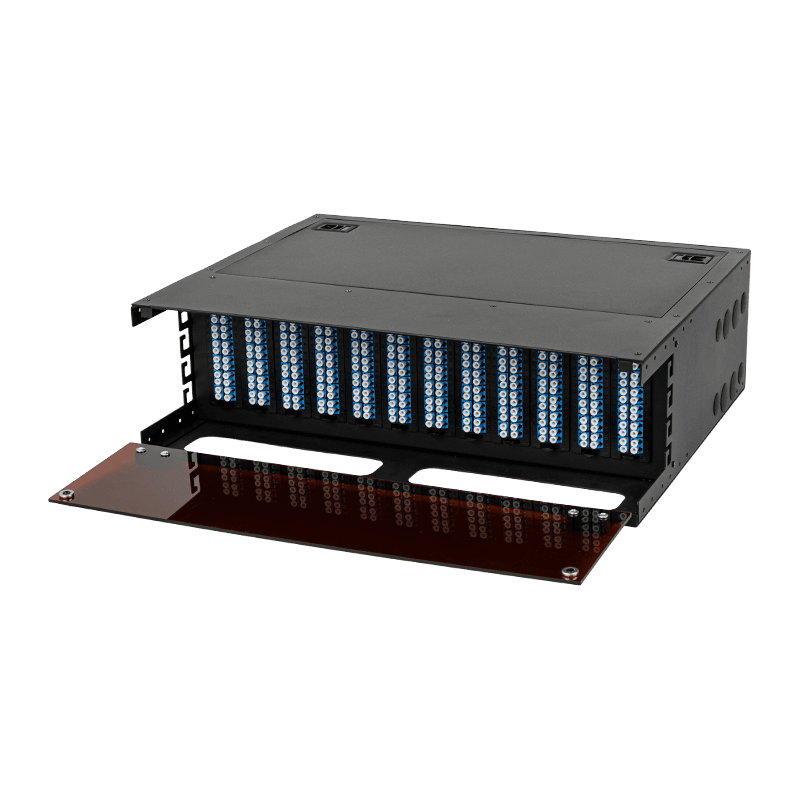

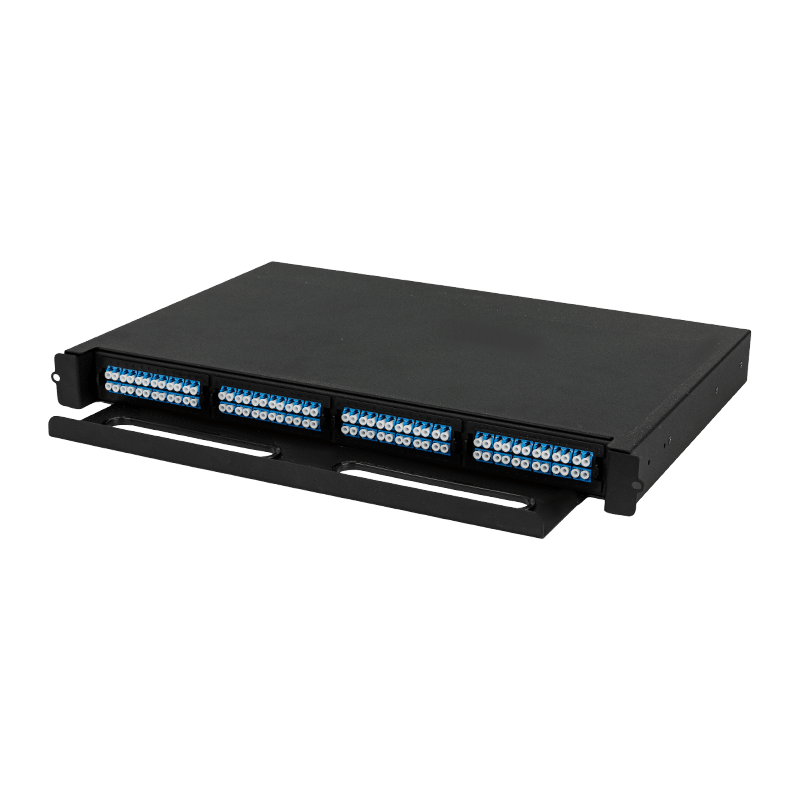

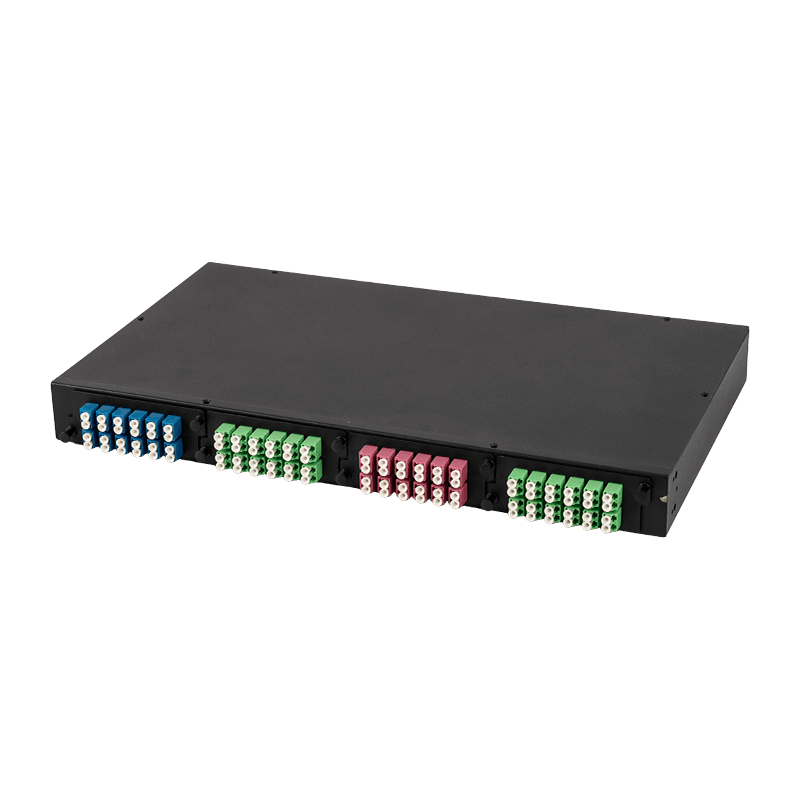

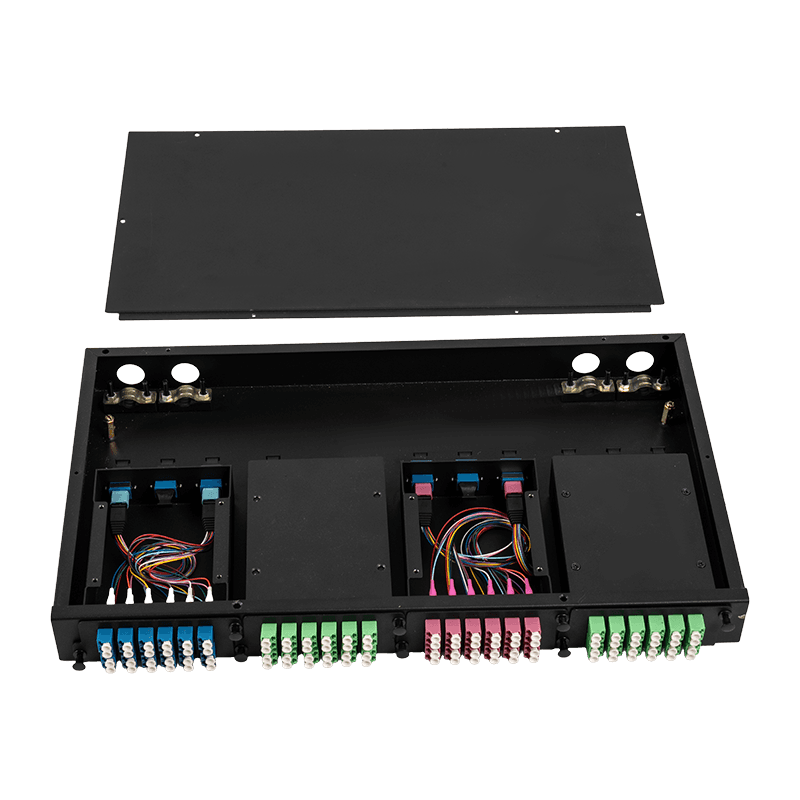

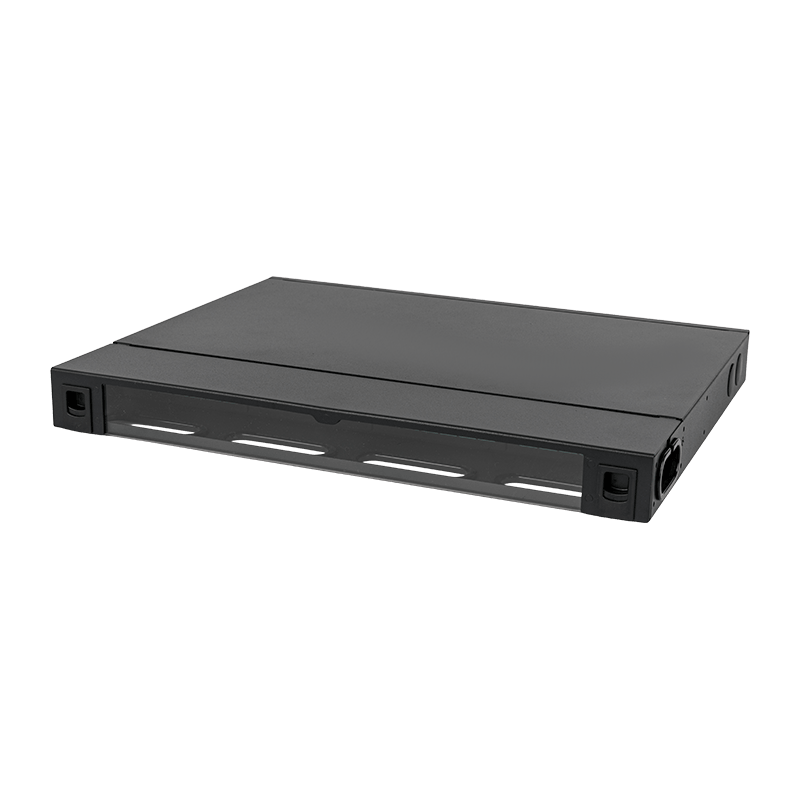

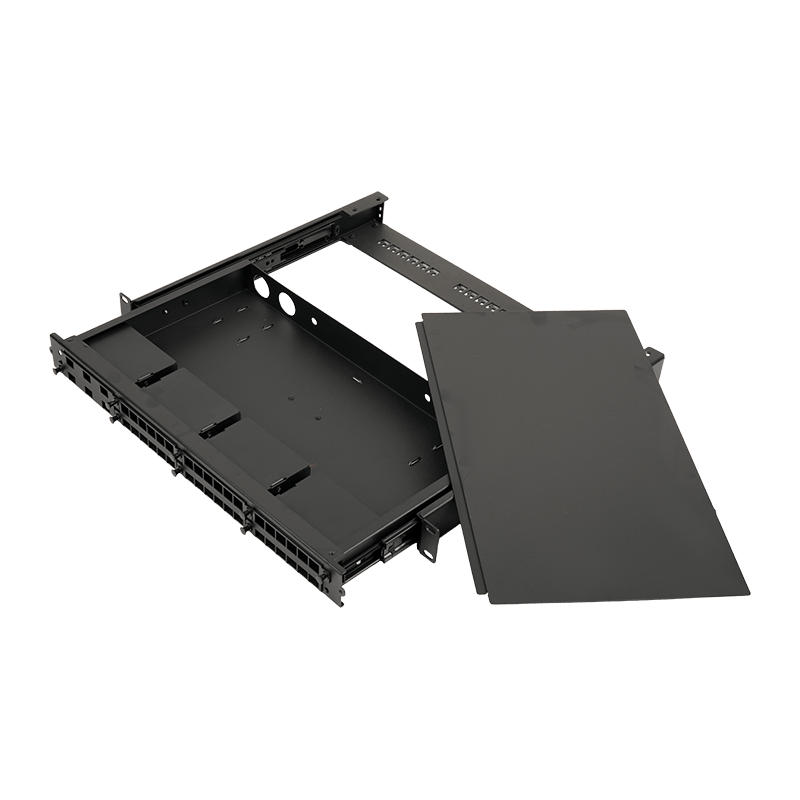

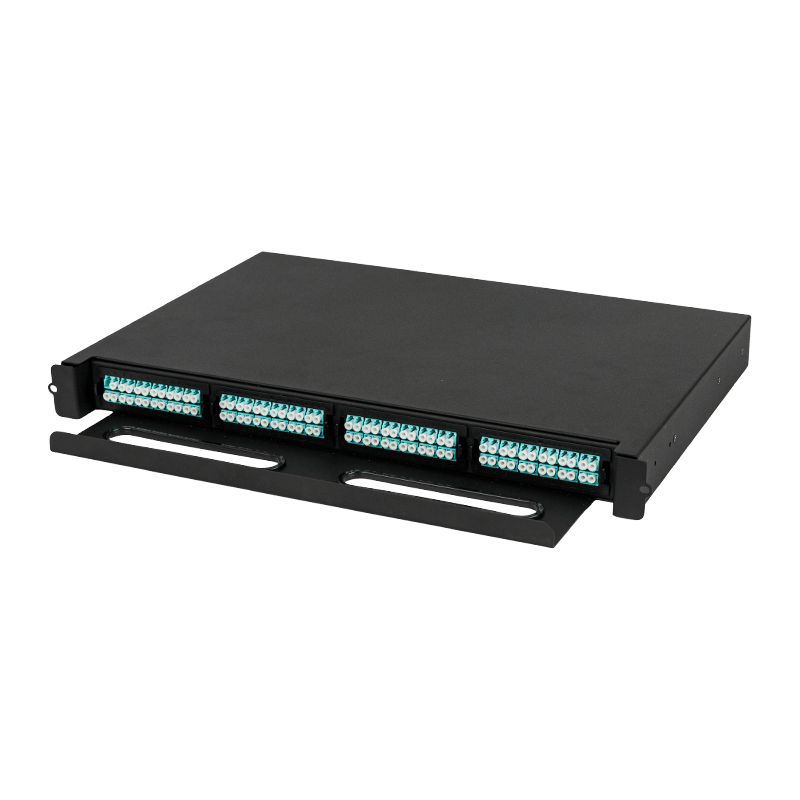

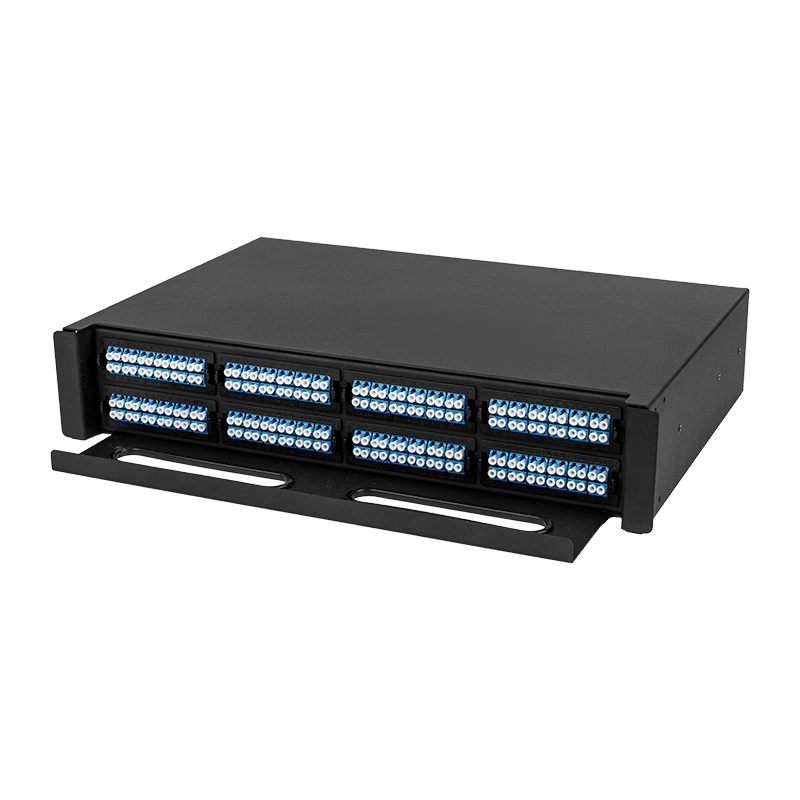

High-Density Modular Patch Panel is a versatile MPO Patch Panel designed for 19-inch standard racks, providing reliable fiber management with multiple configuration options. This High-Density Patch Panel is available in flip pull-out, pull-out, enclosed, flip cover, and modular with flip cover types, featuring 1U/2U/3U designs supporting 96 to 288 cores. As a flexible High-Density Patch Panel, it serves as an ideal solution for cable direct connection, branch splicing, and fiber termination storage.
