MPO&MTP Fiber Optic Patch Cord

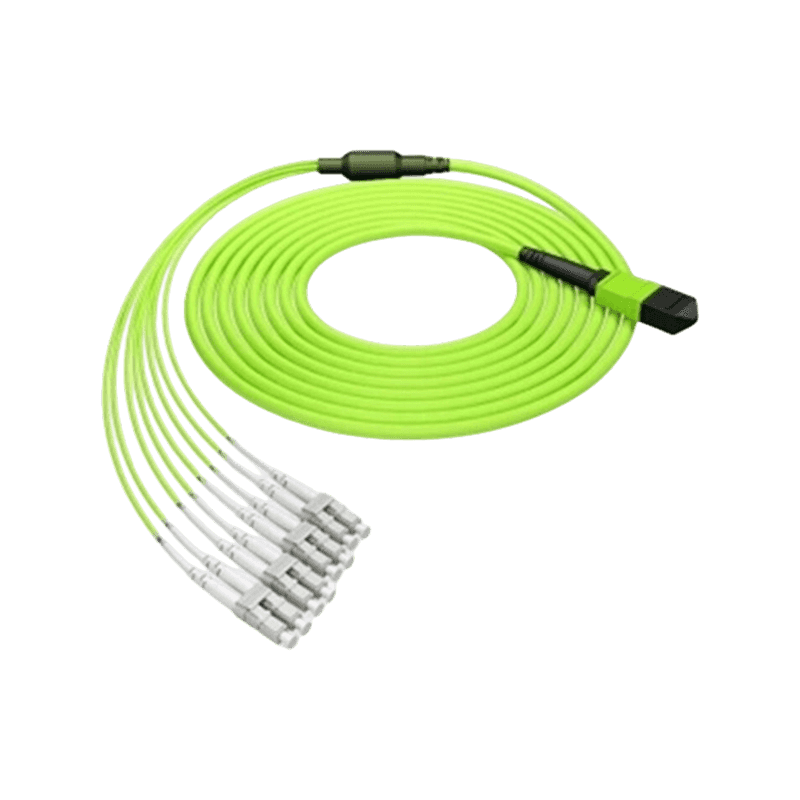

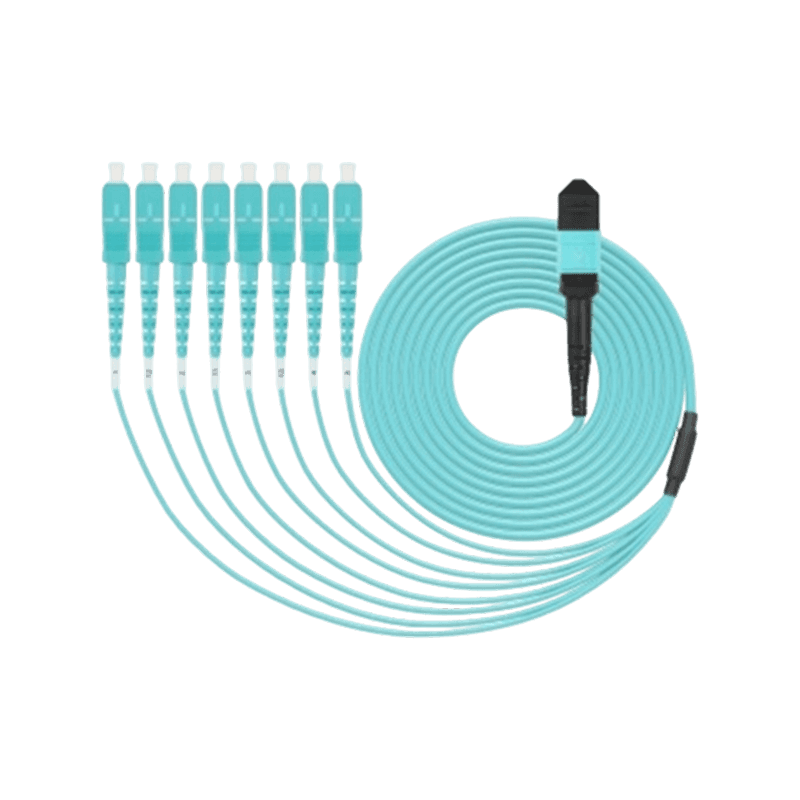

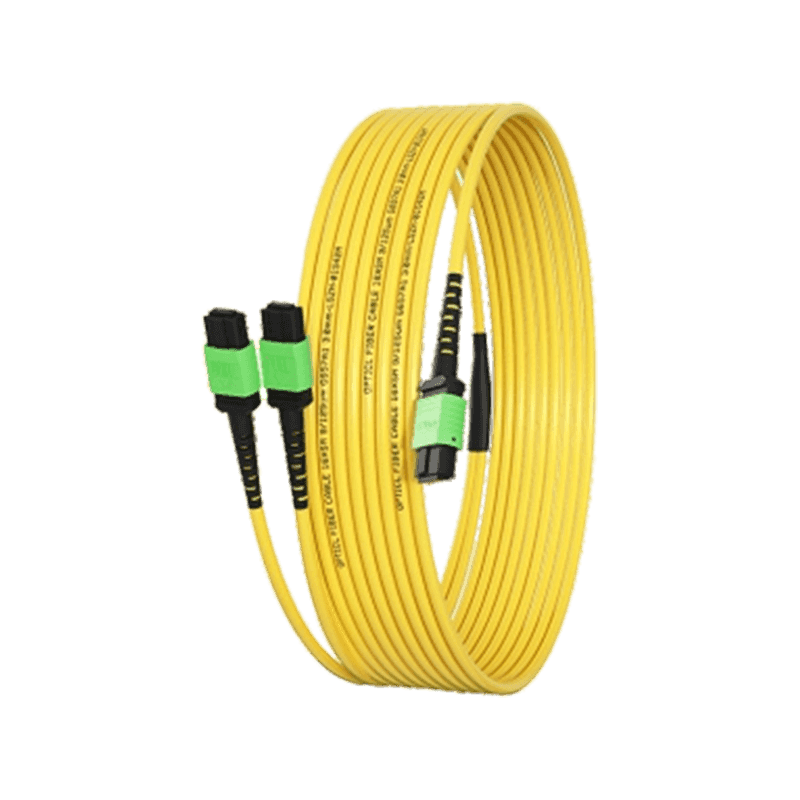

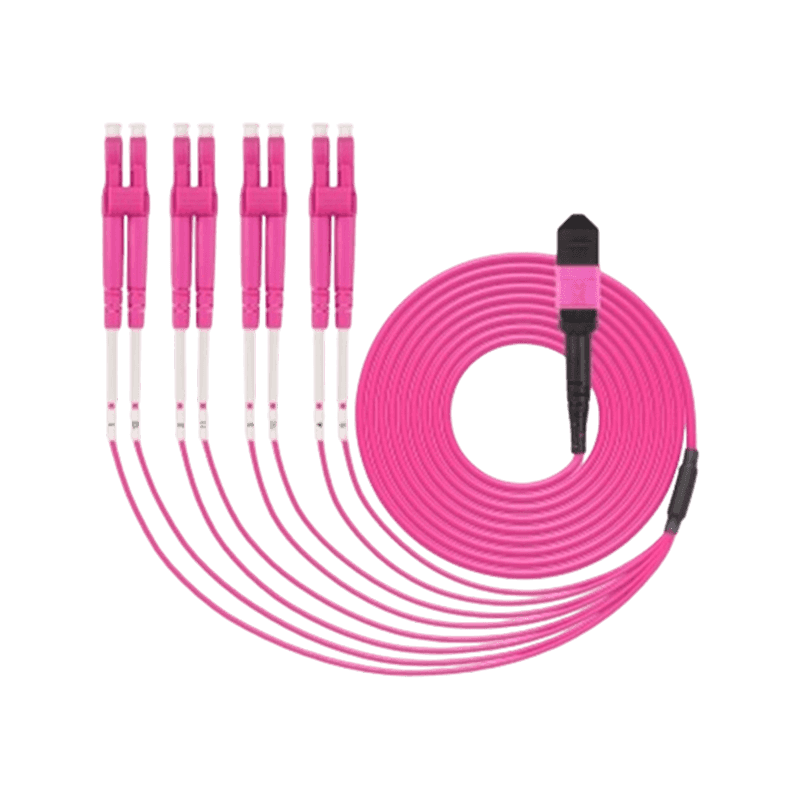

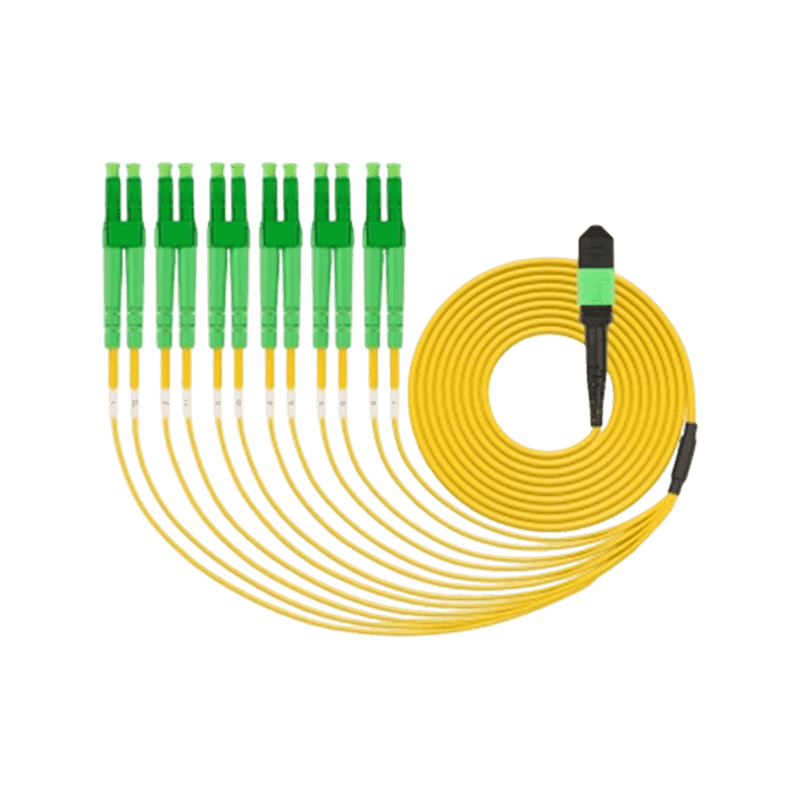

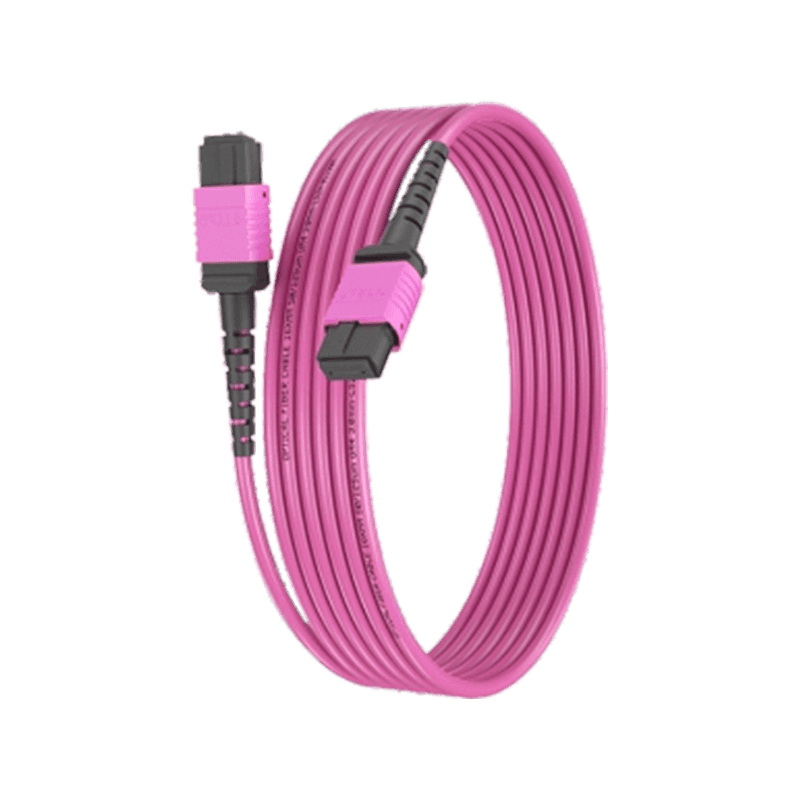

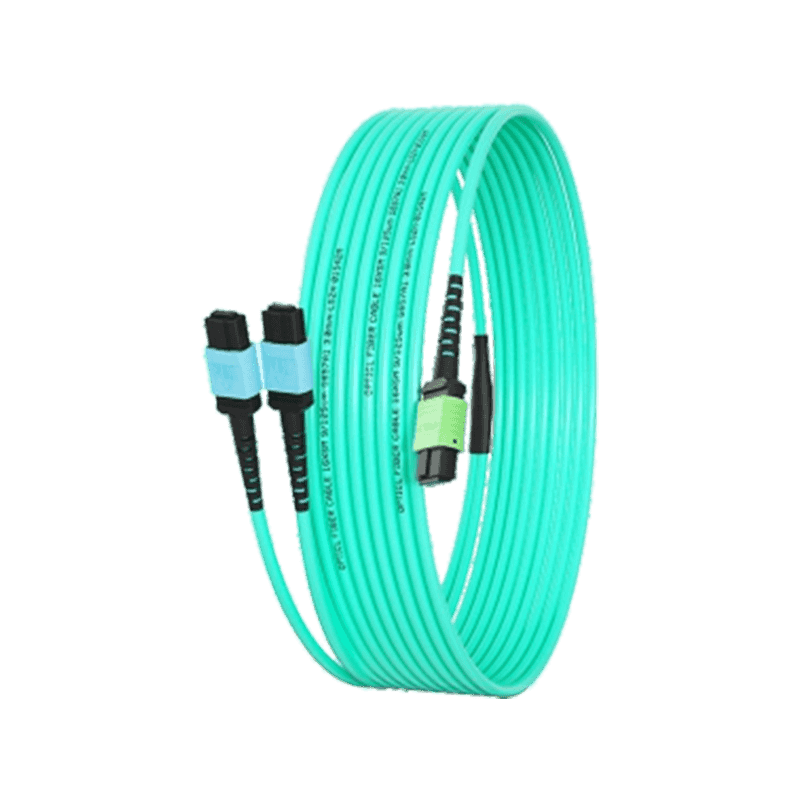

MPO & MTP Fiber Optic Patch Cord is a high-performance MPO&MTP Patch Cord designed for high-density fiber optic network deployments. As a versatile MPO&MTP Patch Cord, this Fiber Optic Patch Cord supports MPO/MTP to LC configurations and is ideal for data centers, telecommunication networks, and FTTH applications.

Get a Quote

Passive Fiber Components - One-Stop Supply

Focused on Fiber Connectivity, Empowering the Network Future.

Ningbo Huanbang Communication Equipment Co., Ltd. Ningbo Huanbang Communication Equipment Co., Ltd.

Since 2017

Ningbo Huanbang Communication Equipment Co., Ltd.

Reliable Fiber Optics, Professional Service - Huanbang, Your Partner for Success.

Connecting Your World with Quality and Reliability.

Ningbo Huanbang Communication Equipment Co., Ltd. is dedicated to the R&D, production, and system integration of fiber optic components and network cabling products, equipped with advanced facilities and a professional team. We operate under the ISO9001 quality system, delivering reliable products and satisfactory service to our customers.

About huanbnag
Ningbo Huanbang Communication Equipment Co., Ltd.

Certificate Of Honor

Message Feedback

Fiber News, Connected Future

Industry Frontiers - Huanbang Perspective.

  • Industry News | 2026,09,07

    MPO Fiber Optic Patch Cords – A Complete Guide from Basics to Selection

    What Is an MPO Fiber Optic Patch Cord? MPO (Multi‑fiber Push‑on) is a high‑density multi‑fiber connector standard, compliant with IEC‑61754‑7 and TIA‑604‑5 specifications. An MPO fiber optic patch cord is a multi‑fiber cable terminated with MPO connectors on both ends. Originally developed by NTT of Japan, it has now become a globally adopted high‑density cabling solution. Key Difference from Traditional Single‑Fiber Patch Cords: A conventional single‑fiber patch cord carries only one signal per fiber. To transmit 12 signals, you would need 12 individual cords. In contrast, a single MPO cord integrates 8/12/16/24 fibers (with 12‑fiber being the current mainstream) in one cable, replacing 12 single‑fiber cords. This improves cabling efficiency by more than 10 times and reduces rack space usage by up to 70%. MPO End‑Face Types: APC vs. UPC APC (Angled Physical Contact): Features an 8‑degree angled end‑face that effectively reduces reflections. It is recommended for high‑speed transmission systems sensitive to reflections, such as 100G and 400G data center networks, as it minimizes signal reflection interference. UPC (Ultra Physical Contact): Uses a flat polishing process with a smooth surface and low connection loss. It is suitable for standard optical communication systems, such as enterprise LANs, where performance is required but cost control is also a factor. MPO Cable Types: Multimode vs. Singlemode Multimode MPO (OM Series): Features a larger core diameter (50/62.5μm), shorter transmission distances (≤300 meters), lower cost, and easier termination. It is the preferred choice for intra‑data‑center connections (e.g., server‑to‑switch links). For 100G rates, OM4 is the minimum; for 400G and above, OM5 is recommended. Singlemode MPO (OS Series): Features a smaller core diameter (9μm), long‑distance transmission (over 10 km), and extremely low signal attenuation. It is ideal for inter‑data‑center connectivity across campuses and long‑haul links from base stations to core networks. MPO vs. MTP: What's the Difference? MTP can be understood as a "premium optimized" version of MPO, while remaining fully compatible with MPO standards. Its key advantages include higher ferrule precision and approximately 20% lower insertion loss compared to basic MPO, making it suitable for applications where durability and stability are critical.
    View More
  • Industry News | 2026,09,07

    Fiber Innovations in the AI Era – Analyzing Hollow‑Core, Multi‑Core, and Polarization‑Maintaining Fibers

    The Physical Limits of Traditional Fiber Are Approaching As 800G becomes the standard in computing centers, 1.6T is ramping up, and 3.2T is on the horizon, a previously overlooked issue has emerged: is the fiber itself still sufficient to carry these high‑speed signals? Traditional single‑mode fiber has been refined over decades, but its physical boundaries in terms of latency, nonlinearity, capacity density, and polarization stability are being increasingly challenged by computing power demands. Three Emerging Fiber Technology Roadmaps 1. Hollow‑Core Fiber: The "Ultimate Blood Vessel" for AI Computing Hollow‑core fiber replaces the solid silica medium with air for optical signal transmission. In conventional silica fiber, light travels through a dense medium with higher latency. Hollow‑core fiber allows light to travel through air, approaching the theoretical speed of light, reducing transmission time by approximately one‑third. Key Advantages: Ultra‑low latency: ideal for latency‑sensitive applications such as AI model training Low nonlinear effects: more stable signal transmission Low loss: performance continues to improve Industry Progress: China's three major telecom operators have completed multiple pilot tenders for hollow‑core fiber. China Mobile deployed the first operator‑grade hollow‑core commercial line; China Telecom launched pilots in Zhejiang, Sichuan, and Chengdu; and China Unicom completed pilot network integration in Guizhou. Yangtze Optical Fibre and Cable (YOFC) has deployed over 10 commercial and pilot projects across Asia, Europe, and the Americas. In 2025, YOFC helped all three major operators deploy their respective world‑first hollow‑core fiber commercial lines, including the 100‑km Guangdong–Hong Kong project – the world's longest hollow‑core fiber commercial deployment. However, current tender prices are approximately RMB 25,000‑36,000 per core‑kilometer – hundreds of times higher than conventional G.652D single‑mode fiber. Large‑scale commercialization still awaits capacity ramp‑up and yield improvements. 2. Multi‑Core Fiber: A Key Enabler for Parallel Transmission The value of multi‑core fiber extends beyond traditional space‑division multiplexing for high‑capacity long‑haul transmission; it is also deeply integrated with Micro‑LED optical interconnect technologies. Pioneering solutions such as Microsoft MOSAIC and Avicena LightBundle adopt "wide‑and‑slow" parallel transmission architectures, using arrays of Micro‑LEDs as light sources and multi‑core fiber as parallel signal carriers. A single multi‑core fiber integrates dozens or more cores, each paired with a Micro‑LED channel. Application Scenarios: Short‑reach interconnect within AI computing racks and between boards – a key technical path for CPO (Co‑packaged Optics). Current Status: The basic fiber technology for multi‑core is relatively mature, but supporting components (fan‑out devices, coupling schemes, field splicing, and standardized testing systems) remain underdeveloped, and the supporting ecosystem is still in its infancy. 3. Polarization‑Maintaining Fiber: The Foundation for High‑End Optical Components Polarization‑maintaining (PM) fiber is a critical material for high‑end optical devices. As coherent optical modules continue to proliferate and silicon photonics and CPO technologies evolve, the demand for PM fiber in device applications is rapidly increasing. Industry focus is shifting from single polarization extinction ratio metrics to engineering parameters such as batch consistency, small‑form‑factor compatibility, and environmental resilience. Domestication Progress: Chinese manufacturers have achieved domestic production of mid‑to‑low‑end PM fiber, while opportunities remain for import substitution in high‑end products for coherent and silicon photonic devices. Common challenges across all three include preform manufacturing, yield, cost, fusion splicing, supporting devices, and testing standards. The technical prototypes have been validated, but the pace of commercialization and cost reduction is still being explored.
    View More
  • Industry News | 2026,09,07

    Fiber Optic Distribution Frames – From Traditional to Intelligent Evolution

    What Is a Fiber Optic Distribution Frame? A fiber distribution frame (also known as an optical distribution frame or ODF) is a rack‑mounted fiber distribution device installed in equipment cabinets. It is a fiber management component within integrated cabling systems, primarily used for termination and management in fiber optic communication networks. It adopts a standard 19‑inch rack‑mounting format and is available in 12‑port, 24‑port, 48‑port, 72‑port, and 96‑port configurations, supporting interface types such as ST, FC, SC, and LC duplex. Vacant ports can be sealed with dust caps. Core Functional Modules of Fiber Distribution Frames Basic Functions: Optical cable securing, fiber splicing, patch cord management, and fiber storage. Design Highlights: Precision structural design with flexible fiber routing and ample storage space Cable securing points located on the rear for easy sheath stripping and protection Adapters feature a snap‑in design requiring no screws Fiber/pigtail bending radius maintained at no less than 30mm, compliant with management standards Some models include splice trays with hinged pull‑out rotation for easy operation Development Trends: Modern distribution frames support up to 96 fibers per 1U of rack space, increasing capacity by 300% compared to traditional equipment. Integration of Distribution Frames with MPO Patch Cords With increasing demand for high‑density cabling in data centers, distribution frames are also evolving toward higher densities. MPO pre‑terminated solutions combined with dedicated distribution frames significantly reduce installation time and save cabling space. Companies such as Hengtong Photoelectric have introduced MPO pre‑terminated dust‑proof modular cassettes with IP5‑level dust protection, effectively blocking dust and debris from entering internal interfaces and ensuring long‑term optical path reliability. Adapter polish types include PC (Physical Contact), UPC (Ultra Physical Contact), and APC (Angled Physical Contact – 8‑degree angle). Different end‑face types are suited to different transmission rates and application requirements. MFOS Universal Fiber Optic Cabling System MFOS (Multi‑Function Optical System) is a universal fiber optic cabling system primarily used in campus networks, building backbones, and fiber‑to‑the‑desktop applications. It includes loose‑tube and tight‑buffered cables, distribution frames, connectors, and patch cords, supporting ST, SC, and LC interface standards and complying with international standards such as ISO/IEC 11801 and ANSI/TIA/EIA 568 B. Common MFOS distribution frame configurations include wall‑mount units (available in 12‑port and 32‑port options) and 19‑inch rack‑mount units (supporting up to 24 fibers), accommodating different installation environments and capacity requirements.
    View More
